Copper Alloy Bar is engineered to provide enhanced mechanical strength, wear resistance, and durability compared with pure copper materials. It is designed for demanding industrial applications where structural performance and long-term reliability are critical.
Widely used in mechanical components, industrial equipment, precision machined parts, and engineering applications requiring higher strength and improved service performance.

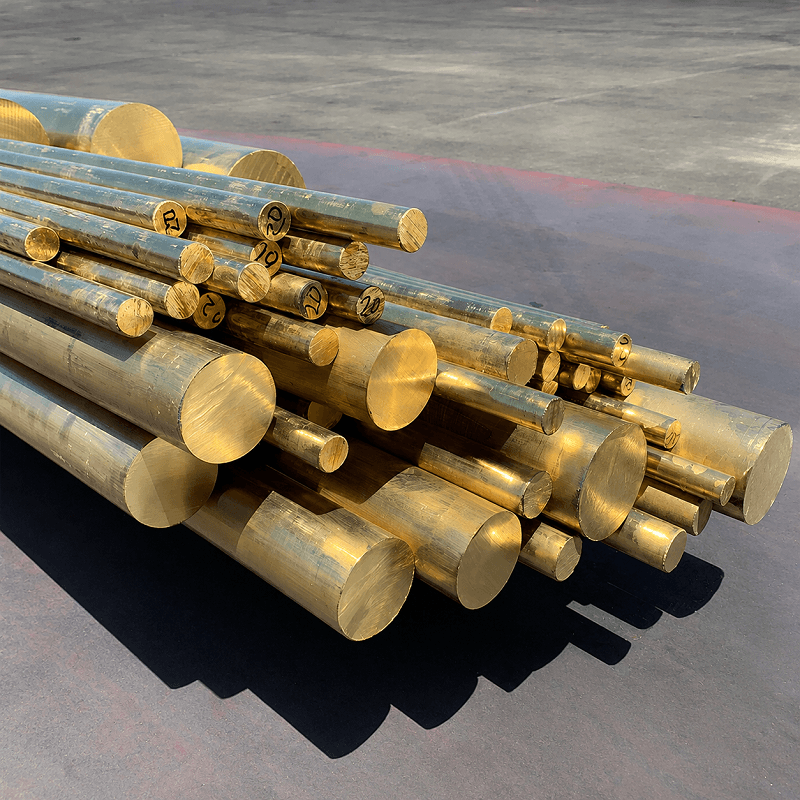

Copper alloy bar (high-machinability free-cutting brass bar C36000, phosphor bronze round rod C54400/C51000, beryllium copper bar C17200, aluminum bronze rod C95400/C63000, and tellurium copper rod C14500) is continuous-cast, hot-extruded, and cold-drawn to deliver superior machinability ratings (up to 100% UNS C36000 baseline), exceptional tensile strength, elevated wear endurance, and reliable electrical/thermal conductivity. Engineered specifically for high-speed automatic Swiss screw machining, heavy-duty bushings, architectural hardware, and power connectors, precision copper alloy bar guarantees tight dimensional tolerances and flawless surface finish under automated turning operations.

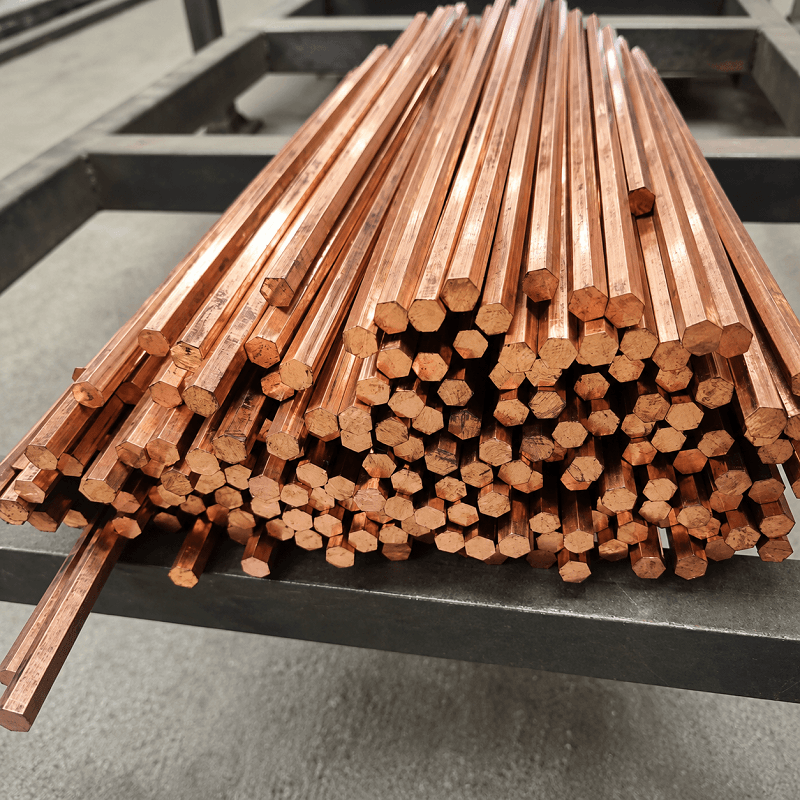

At XQJ Metal, we operate advanced horizontal continuous casting lines, hydraulic extrusion presses, multi-pass cold drawing machines, and centerless precision grinders to manufacture world-class copper alloy bar products conforming strictly to global engineering standards, including ASTM B16 (free-cutting brass rod), ASTM B139 (phosphor bronze rod), ASTM B196 (beryllium copper bar), ASTM B150 (aluminum bronze rod), EN 12164, and JIS H3250 specifications. We supply full diameter sizes ranging from 3mm to 300mm in round, hexagonal, square, and custom rectangular bar profiles, available in annealed (O60), half-hard (H02), full-hard (H04), and solution age-hardened tempers.
| Copper Alloy Family | Standard Grade & UNS Code | Tensile Strength (MPa) | Machinability Rating (%) | Primary Engineering Attributes |
| Free-Cutting Brass Bar | C36000 (CuZn39Pb3) / C37700 | 380 to 580 MPa | 100% (Standard) | Ultra-fast CNC chip breaking, smooth surface finish, ideal for precision threaded fasteners & valves |
| Phosphor Bronze Rod | C54400 (CuSn4Zn4Pb4) / C51000 | 420 to 750 MPa | 80% | Superior wear resistance, excellent anti-friction properties for high-load sleeve bushings & bearings |
| Beryllium Copper Bar | C17200 (CuBe2) / C17500 | 750 to 1350 MPa | 20% (Aged: Hard) | Highest yield strength, non-sparking safety tools, elevated thermal dissipation for plastic mold inserts |
| Aluminum Bronze Rod | C95400 (Ampco 18) / C63000 | 620 to 920 MPa | 20% to 50% | Extreme compressive load capacity, heavy abrasion resistance, salt water corrosion immunity for marine hardware |
| Tellurium Copper Rod | C14500 (CuTe) | 280 to 450 MPa | 85% | High electrical conductivity (85% IACS) combined with high-speed machining for welding nozzles & plasma tips |
Selecting between pure copper bar (C11000 ETP / C10200 OFC) and specialized copper alloy bar depends on cutting speeds, wear requirements, and structural strength:
Precision machine shops, aerospace suppliers, and valve manufacturers rely on our copper alloy bar stock for precise tolerances:
Our high-performance copper alloy bar products are widely specified across global manufacturing industries:
To guarantee zero internal defects and 100% metallurgical consistency, XQJ Metal enforces strict Quality Assurance (QA) protocols on every copper alloy bar batch:
Q1: What is the advantage of using Tellurium Copper Bar (C14500) over standard ETP Copper (C11000)?
A: C14500 Tellurium Copper provides 85% machinability (compared to 20% for pure copper) while maintaining 85% IACS electrical conductivity, making it the ideal material for high-volume CNC-machined electrical contacts and plasma welding nozzles.
Q2: Can XQJ Metal supply precision centerless ground copper alloy bars with h7 diameter tolerance?
A: Yes, our precision centerless grinding machines can process round copper alloy bars to tight h7, h8, or h9 diameter tolerances with ultra-smooth surface finish (Ra ≤ 0.4µm) tailored for automatic Swiss screw machines.
To request current FOB/CIF price quotes, alloy bar datasheets, or sample round rods for copper alloy bar, Contact Our Alloy Engineering Team today.
Our materials support a wide range of construction and infrastructure projects
The appropriate copper alloy bar depends on the required electrical conductivity, mechanical strength, corrosion resistance, wear resistance, and machining performance. Selecting the correct alloy grade helps ensure reliable performance and cost-effective manufacturing.
Different copper alloy bars offer varying combinations of conductivity, strength, hardness, corrosion resistance, and machinability. Understanding these property differences helps engineers select the most suitable material for specific industrial applications.
Copper alloy bars are widely used in electrical engineering, marine equipment, industrial machinery, mold manufacturing, automotive components, aerospace, and precision machining. The specific alloy grade should be selected according to the performance requirements of each application.
It offers excellent resistance to seawater corrosion and maintains strength in humid and salt-rich conditions.
No. Strength is achieved through strain hardening rather than heat treatment.
Yes. It provides excellent weldability for structural fabrication.
Yes, it is commonly applied in tanks and pressure equipment.
Yes. It provides higher strength compared with most non-heat-treated aluminum alloys.
Yes. Thickness, width and temper can be adjusted based on project demand.
