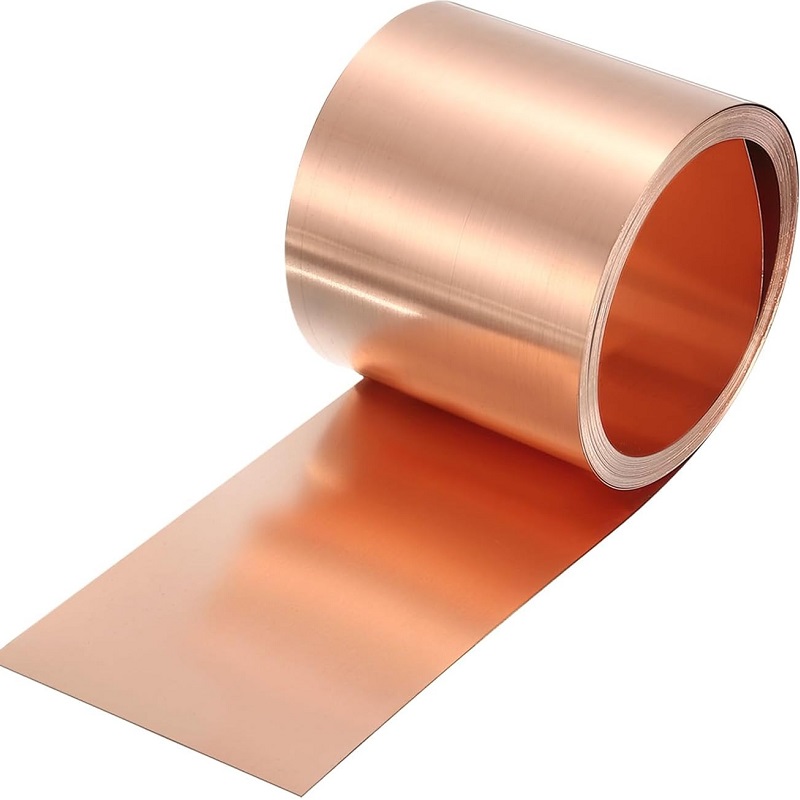

C12000 Copper Strip is a phosphorus-deoxidized copper material offering good electrical conductivity, corrosion resistance, and enhanced welding and brazing performance. It provides reliable fabrication characteristics for industrial applications requiring durable and efficient copper components.
Widely used in heat transfer systems, industrial components, fabricated parts, and engineering applications requiring dependable processing performance and long-term service reliability.
C12200 copper strip (UNS C12200 DHP phosphorus-deoxidized copper strip, foil, and coil) is continuous-cast, cold-rolled, and bright-annealed to deliver exceptional thermal conductivity, superior deep-drawing ductility, clean surface finish, and 100% immunity to hydrogen embrittlement during high-temperature flame brazing and welding. Engineered specifically for HVAC heat exchanger fins, electrical transformer shielding, solar thermal absorbers, and precision progressive die stamping, high-purity C12200 copper strip guarantees tight thickness tolerances and reliable joint integrity under automated processing.
At XQJ Metal, we operate advanced four-high cold rolling mills, continuous atmosphere bright annealing furnaces, precision CNC coil slitting lines, and automated tension levelers to manufacture world-class C12200 copper strip products conforming strictly to global engineering standards, including ASTM B152 (copper sheet, strip, plate), ASTM B888, EN 1652, and JIS H3100 specifications. We supply full thickness ranges from 0.05mm to 3.0mm and coil slitting widths from 10mm to 600mm, available in soft annealed (O60), quarter-hard (H01), half-hard (H02), full-hard (H04), and extra-spring tempers.
| Specification Parameter | C12200 Copper Strip Standard Values |
|---|---|
| Alloy Designation & Grade | UNS C12200 / Cu-DHP / CW024A / TP2 / ISO Cu-DHP |
| Chemical Composition | Copper (Cu) ≥ 99.90%, Phosphorus (P) 0.015% – 0.040% |
| Thickness Range & Form | 0.05mm to 3.0mm (Precision foil ribbons & heavy coil strips) |
| Slit Width & Inner Diameter | 10mm to 600mm width; Coil ID: 100mm, 200mm, 300mm, 500mm |
| Tensile Strength & Elongation | 200 MPa to 410 MPa; Elongation ≥ 30% (Soft Annealed O60) |
| Thermal & Electrical Attributes | Thermal Conductivity: ~360 W/m·K; Electrical Conductivity: ≥ 85% IACS |
Selecting between phosphorus-deoxidized C12200 copper strip and tough pitch copper (C11000 ETP strip) depends on flame welding requirements, deep-drawing formability, and operating temperature environment:
Transformer manufacturers, radiator fabricators, and machine shops rely on our C12200 copper strip coils for uninterrupted high-speed line feeding:
Our high-performance C12200 copper strip products are widely specified across multiple global manufacturing sectors:
To guarantee zero surface defects and 100% metallurgical consistency, XQJ Metal enforces strict Quality Assurance protocols on every C12200 copper strip batch:
Q1: Why is C12200 Copper Strip preferred over C11000 for flame-brazed heat exchangers?
A: C12200 Copper Strip is phosphorus-deoxidized (0.015%–0.040% P), completely eliminating hydrogen embrittlement micro-cracking during gas torch brazing, whereas C11000 ETP copper is vulnerable to cracking under high brazing temperatures.
Q2: What are the tightest thickness and slitting width tolerances XQJ Metal can achieve for C12200 copper strip?
A: We supply C12200 copper strip down to 0.05mm foil thickness with thickness tolerances within ±0.003mm and narrow slit widths down to 10mm with ±0.05mm width precision.
To request current FOB/CIF price quotes, technical datasheets, or custom coil slitting samples for C12200 copper strip, Contact Our Technical Sales Team today.
Our materials support a wide range of construction and infrastructure projects
C12000 copper strip is a phosphorus-deoxidized copper alloy with good electrical conductivity and excellent corrosion resistance, while C12200 contains a higher phosphorus content and is more commonly selected for applications requiring extensive welding or brazing. The appropriate grade should be selected according to the fabrication process and service requirements.
C12000 copper strip combines good ductility, dimensional consistency, and reliable fabrication performance, making it suitable for precision forming, bending, and stamping processes used in industrial and electrical manufacturing.
C12000 copper strip is widely used for electrical connectors, terminals, heat transfer components, shielding parts, and other fabricated products that require a balance of conductivity, corrosion resistance, and manufacturing reliability.
It offers excellent resistance to seawater corrosion and maintains strength in humid and salt-rich conditions.
No. Strength is achieved through strain hardening rather than heat treatment.
Yes. It provides excellent weldability for structural fabrication.
Yes, it is commonly applied in tanks and pressure equipment.
Yes. It provides higher strength compared with most non-heat-treated aluminum alloys.
Yes. Thickness, width and temper can be adjusted based on project demand.
